Foshan Shunde Green Motor Technology Co.,Ltd.

Quick Details

Seats: 3 - 4

Fuel Type: Electric

Battery Voltage: 48V

Certification: CE

Model: DN-4D

Place of origin: China

Carrying capacity: 320kg

Maximum speed: 28km /h

Slope Climbing Capacity: 30%

Motor: DC48V3KW

Battery: 8V170AH* 6

Chassis: Steel

Min. Turning radius: <4.5

Overall Dimension: L3140 * W1300 * H1220(mm)

Packaging & Delivery

Packaging Details:	Container order, remove the canopy and put two layer in the container and holded with the wood. Sample order, package in the individual steel shelf and with the protective material.
Delivery Detail:	2 weeks after receiving the deposit

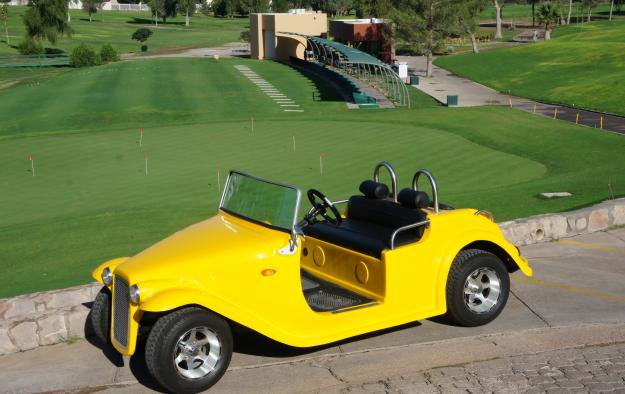

Classical Golf Cart
Maximum speed:28km /h
Luxurious outlook
American Cutis Electronics Controller
CE certificate

New design nostalgia series luxury electric fast golf carts with CE (China) detailed information

Model No	DN-4D Nostalgia series
POWER SUPPLY
Battery	8V170AH* 6
Motor	48V3KW
Controller	American Cutis Electronics Controller
Accelerator	Adjustable Inductive Accelerator Continuously Variable Speed System
Charger	Full Automatic Efficiency Pulse Charger
PERFORMANCE
Maximum Speed	28 KM/H
Maximum Travel Distance	80KM
Slope Climbing Capacity	30%
Brake Range	≤5M
Maximum Noise	<50dB(A)
Carrying Capacity	250KG
Turning Radius	4.5M
Net Weight	460KG(Without battery)
SUSPENSION
Suspension	Leaf Spring With Direct-Acting Shock Absorber,Half Independent Suspension
Steering	Self Compensating "Rack & Pinion" Steering
Braking	Rear Wheel Mechanical Drum Brake and Regeneration Brake
CHASSIS
Chassis	Steel
Wheel Base	1800mm
Front Wheel Tread	1000mm
Rear Wheel Tread	1025mm
Tire	225/55B12,6P
Ground Clearance	330mm
Dimension(LWH)	314012351300MM
Qty per Container	2pcs/1*20ft
	4pcs/1*40HQ
	8pcs/1*45HQ
