Electric golf car for 8 person

Product Description

1 More than 20 years manufacture experience. 2 Get the certifications of many countries. 3 High quality and competitive price. GENERAL SPECIFICATION

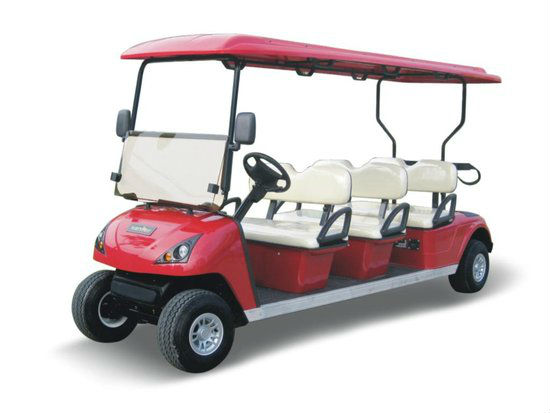

Battery	6pcs x 8V US battery	The following Picture just for your reference, your golf car will be subject to your choose.
Motor	4KW motor
Controller	Curtis 1268 (400A@2minutes)
Charger	Deltar-Q brand, input 110V-240V, 50Hz-60Hz, output 48V, 18A
Accelerator	Adjustable Inductive Accelerator Continuously Variable Speed System
Suspension	Leaf Spring With Hydraulic Shock Absorbers	Overall dimensions	394011801950mm
Steering	Self Compensating" Rack & Pinion" Steering	Max. loading weight	640kgs
Brakes	Rear wheel Mechanical Drum Brake & Regeneration Brake	Net weight	440kgs
Passenger capacity	6	Chassis	Steel
Load range	80-100 km	Wheel base	3150mm
Max. speed	18-24 km/h	Front wheel Tread	870mm
Minimum turning radius	6m	Rear wheel Tread	970mm
Max. climbing ability	30%	Tires	18*8.50-8,4Ply
Container Loading Qty	Disassemble (canopy, top frame & windshield)	4pcs / 1*20ft	12pcs / 1*40HQ

STANDARD CONFIGURATION
Windshield	one - piece glass
Dashboard	In black plastic finish , forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Wheels	Steel 18*8.50-8, 4Ply
Reversing alarm	\
Score card holder	on steering wheel
Body	fiberglass front + rear plastic body
Roof	PP plastic
Steering system	Self compensating "rack & pinion" steering
Brake system	Rear wheel mechanical drum brake and regeneration brake
Accelerator	Adjustable Inductive Accelerator Continuously Variable Speed System
Suspension system	Leaf spring with hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
