Foshan Shunde Green Motor Technology Co.,Ltd.

Quick Details

Place of Origin: Guangdong, China (Mainland)

Model Number: DN-23

Passenger Capacity: 23

Controller: Curtis controller, 72V550A

Motor: 72V9KW /AC

Charger: 2*20A/72V full automatic high frequency charger

Battery: 6V battery x 24pcs

Rang: 120KM

Max.speed: 25KM

Suspenwith telescopic shock absorbersion: Longitudinal leaf spring with telescopic shock absorber

Braking System: Four wheels hydraulic braking system and independent parking brake

Chassis: Steel

Packaging Details: Container order, remove the canopy and package in the protective material. Sample order, packaged in the individual steel shelf and the protective material.

Delivery Detail: 2 weeks after receiving the deposit

Packaging Details:	Container order, remove the canopy and package in the protective material. Sample order, packaged in the individual steel shelf and the protective material.
Delivery Detail:	2 weeks after receiving the deposit

Electric sightseeing Shuttle
Ergonomic design
CE certificate
Max.speed:25KM/H
Full automatic high frequency charger

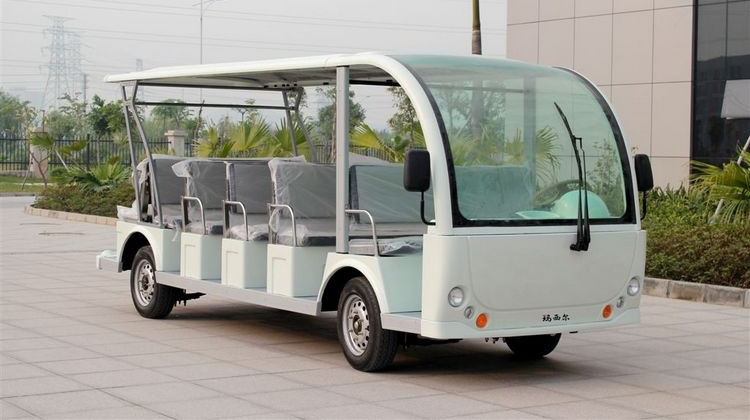

23 Seats Electric sightseeing Shuttle with CE certificate DN-23(China)

1. Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise.

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure

3. Small turning radius; and smart steering system ;Whole style steel rear axle;

4. Can be easy modified to transportation vechicles,

5. CE certificate for whole carts;

6. Import main parts:US batteries( From USA) and Curtis controller(From USA).Delta-Q chargers(From Canada)

7. Four wheels hydraulic braking system and independent parking brake

DN-23
Passenger Capacity	23 passengers (include the driver)
Chassis	Steel
Drive System
Motor	72V9KW /AC
Differential	Whole style electric rear axle, reduction ratio: 12.49:1
Controller	72V550A
Charger	2*72V20A full automatic high frequency charger
Battery	6V battery x 24pcs
DC/DC converter	72V/12V 300W output for all 12V accessories
Suspension	Longitudinal leaf spring with telescopic shock absorber
Braking System	Four wheels hydraulic braking system and independent parking brake
Performance Data
Range	120km
Max. Speed	25km/h
Grade Ability	15%
Dimensions	Length	5600mm
	Width	2100mm
	Height	2205mm
	Wheelbase	3420mm
	Weight	2130Kg (with battery)
	Ground Clearance	100mm
	Turning Radius	≤8.5m
Standard Features	Front and rear lights
	Rear view mirrors
	Speed meter
	Wiper
	Power assisted steering system
	AC system
optional parts	Loud speaker
	CD player
	Weather enclosure
	Side sunshade curtain
	3 points seat belt for driver
Container Quantity	1PCS/20FT 2pcs/40HQ
