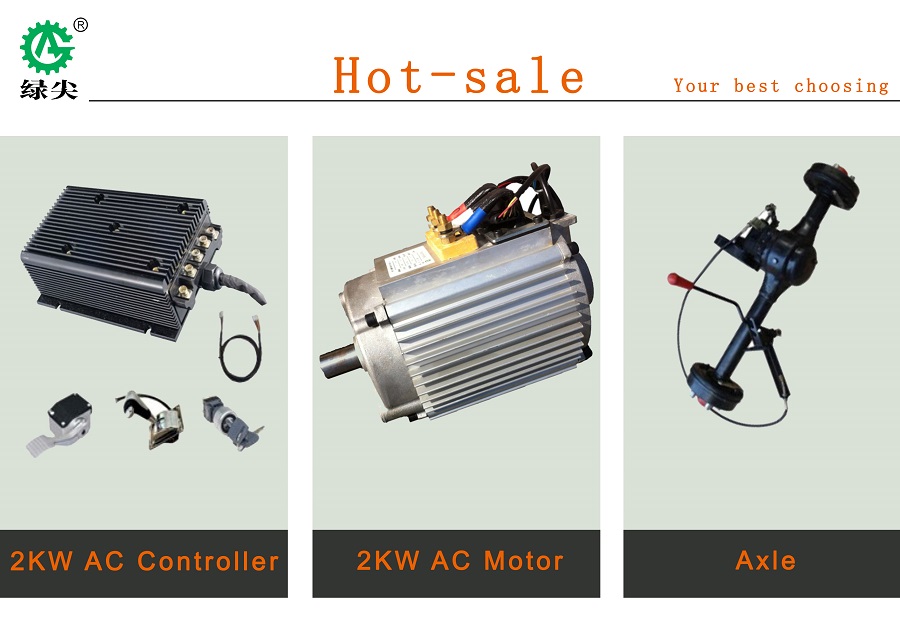

| Item | Specification | ||||||
| Motor | Rated power | 2kw | |||||
| Battery voltage | 48V | ||||||
| Rated frequency | 140Hz | ||||||
| Rated speed | 4100RPM | ||||||
| Max. speed | 7000RPM | ||||||
| Ambient temperature | -20℃~40℃ | ||||||
| Protection grade | IP55 | ||||||
| Insulation grade | F | ||||||
| Max.torque | 28 N.m | ||||||
| Duty | S2-60min | ||||||
| Installation size | Tailor made to customer's size | ||||||
| Size | Φ145 * 237mm | ||||||
| Net weight | 15kg | ||||||
| Packing | Wooden box | ||||||
| HS code | 85015200 | ||||||
|
Controller assembly key switch, stall switch, accelerator, and wire harness) |
Rated voltage | 48V DC | |||||
| Working voltage range | 65%~135% of rated | ||||||
| Rated output current | 60A | ||||||
| Maximum output current | 200A | ||||||
| Digital input | 8 | ||||||
| Analog input | 2 | ||||||
| Protection grade | IP65 | ||||||
| Ambient temperature | -40 ~ 50℃ | ||||||
| Control mode | Vector control | ||||||
| Communication mode | CAN | ||||||
| Size（L*W*H) | 230*165*75mm | ||||||
| Net weight | 3kg | ||||||
| Packing | Carton | ||||||
| HS code | 85371090 | ||||||
| Rear axle | Ratio | 10:1 | |||||
| Speed capacity | 8000RPM | ||||||
| Torque capacity | 80N.m | ||||||
| Noise | ≤65dB | ||||||
| Length | Tailor made to customer's size | ||||||
| Installation size | |||||||
| Leaf spring distance | |||||||
| Brake style | |||||||
| Hub size | |||||||
| Est. net weight | 35kg | ||||||
| Packing | Wooden box | ||||||
| HS code | 87085079 | ||||||
|
|||||||||||||||||||||||
