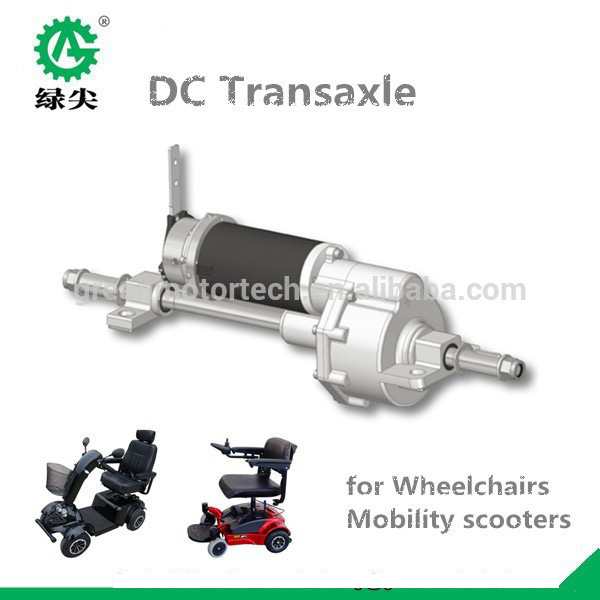

24V 180W DC Transaxle

Description	Transaxle
Part Number	HQ-017B
Operating Voltage	24VDC
Output Power	180W
No-load Current	4A
Motor Speed ±5%	3600RPM
No-load Output Speed	235RPM
Gear Ratio	17.75:1
Sound Level	62(dB(A)
Brake Torque	3Nm(Brake)
Gearmotor Rated Torque	10Nm
Motor OD	Φ68mm
Output Shaft OD	Φ19mm
Weight	7Kg
Size	580*270*220mm

Green Motor Technology’s low voltage AC motors,AC controllers and rear axle are widely used for in-campus EVs, low-speed EVs, and the passenger EVs. we warmly welcome your joining in our business, and together with you, to realize our great mission "Green motor mobilizes motion" !
