24vdc 320w Drive axle for trolley

Part Number :GEVDG-159B
Operating Voltage :24VDC.
Output Power: 320W.
No-load Current :5.5A .
Motor Speed ±5%: 4900RPM .
No-load Output Speed: 180RPM.
Gear Ratio :26.25:1.
Sound Level :62.
Brake Torque :50Nm .
Gearmotor Rated Torque :19Nm.
Motor OD: Φ 82mm .
Output Shaft OD:Φ 19mm.
Weight:15Kg .
Size:445*440*325mm.

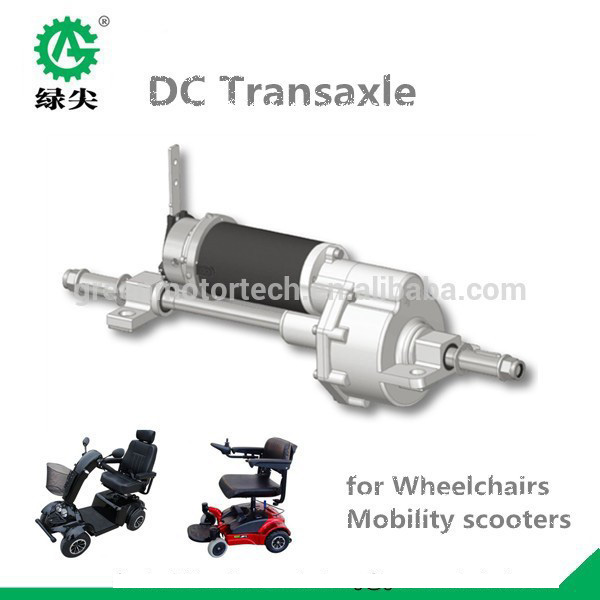

Transaxle can be use on scooter,light load vehicle,boat,machine,E-trolley and so on.
